Modular Frames & Stands Angle-Top Posts & Accessories

XA1: Angle-top posts

Versatile free standing vertical aluminium post with angled plate for attaching accessories.

  • Easy to assemble and disassemble
  • Multi-purpose and adaptable
  • Basis for many lectern and podium style displays
  • Many accessories to choose from, or can be used to fix your own using hook-and-loop tape

Product Code XA1-45-300
Price (excl. VAT) £86.70

Angle
Base Type

Angle-Top Posts - Single: Product Selection

PLEASE USE THE DROP-DOWN BOXES ABOVE to view the drawing and price of different versions of this display by selecting your preference for 'Base Type' etc:

PLEASE ENQUIRE if the combination you are looking for is not shown as available.

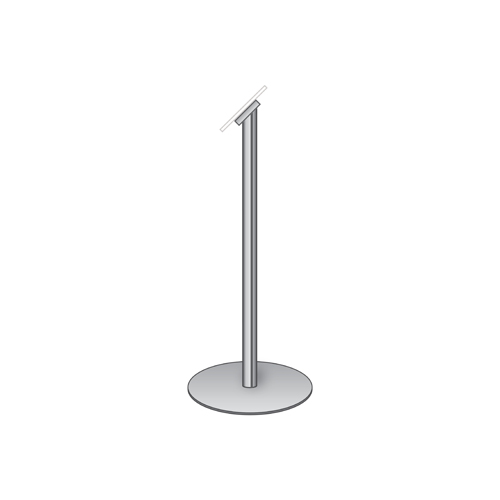

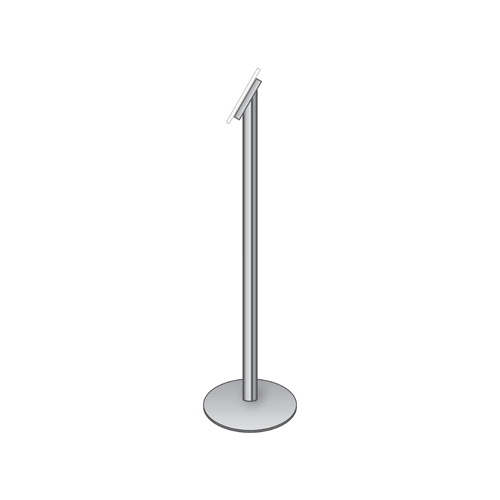

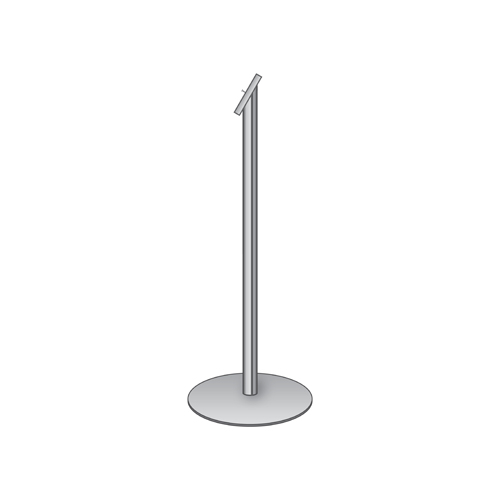

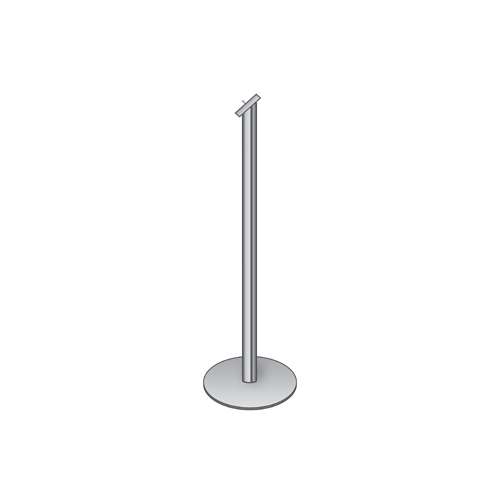

Single leg with perspex topSingle Leg perspex topSingle Leg perspex topSingle Leg perspex top

Angle-Top Posts: Main Features

  • Choice of angles for the fixing plates
  • Choice of fixing methods for accessories
  • Bases available in two sizes (of different weights)

Angle-Top Posts: Components

  • Aluminium post in satin anodised aluminium, 50mm diameter, with two vertical channels which can be used to mount accessories
  • Angled aluminium fixing plate attached to top of post, available at 45 degrees or 60 degrees to the horizontal
    • Posts with plates angled at 45 degrees are 900mm tall
    • Posts with plates angled at 60 degrees are 1m tall
  • Fixing plate can be supplied plain (with 2x M6 fixing holes centred horizontally and 73mm apart) or there is an option to have an acrylic plate fitted to this, 150mm square with two vertical hook and loop strips so that a variety of accessories can be used with it
  • EITHER Weighted circular base made in 8mm mild steel, powder coated silver-grey, 400mm diameter (weighing approximately 7.7kg respectively) OR lightweight 'cross' base with two inter-locking parts (each part 400 x 50mm) made in 3mm stainless steel.

Angle-Top Posts - Single: Display Range

A range of posts and accessories are available in this modular range, allowing you to mix and match items to suit your needs and to reuse the components to create a variety of different stands.

Angle-Top Posts - Single: Variations

Shop Display Systems provide variations including:

  • Bespoke post sizes
  • Alternative bases
